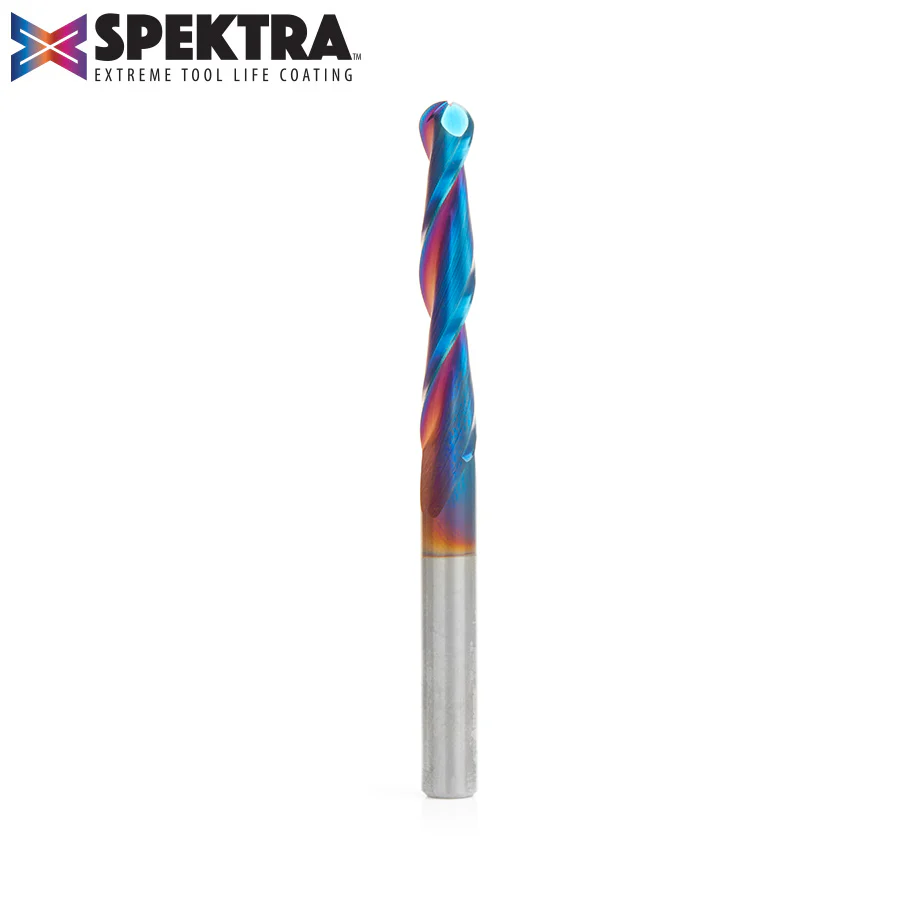

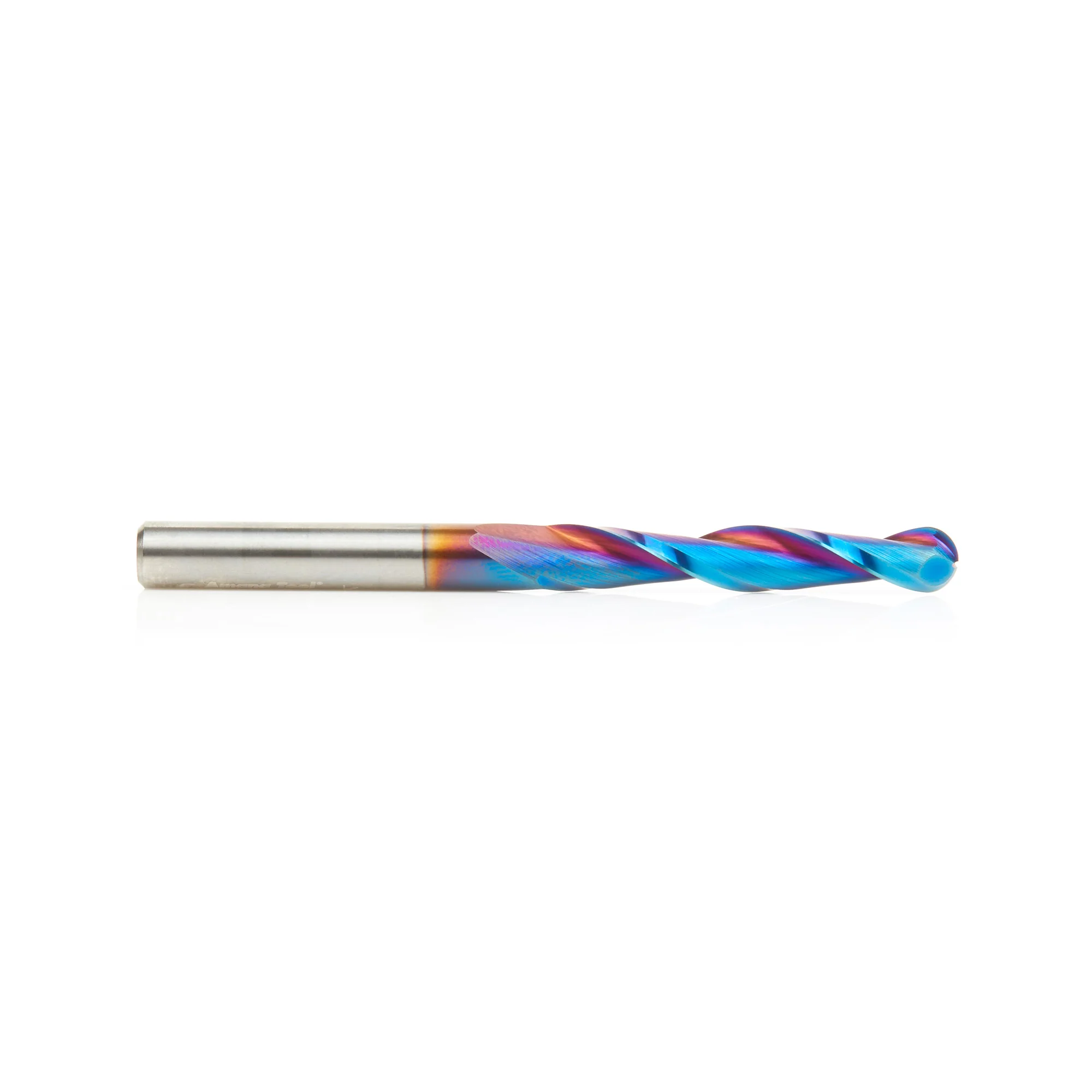

Amana 46294-K Spektra Solid Carbide Taper 3D Spiral Bit, 0.1° Angle

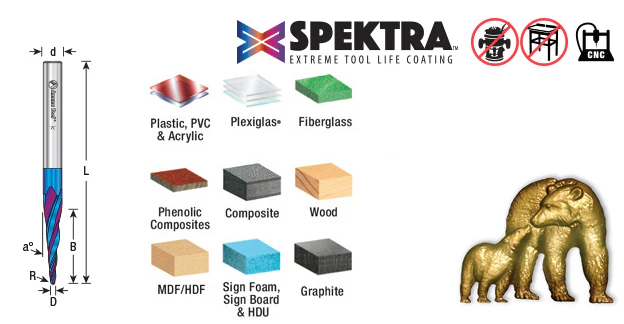

Specially designed for 2D and 3D CNC profiling and carving in plastic & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary Spektra™ coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup.(D) Diameter1/4(R) Radius1/8(a°) Angle0.10°(B) Cutting Height1-1/2(d) Shank1/4Overall Length (L)3TypeBall Nose, nACo Ceramic CoatingFlutes2
Specially designed for 2D and 3D CNC profiling and carving in plastic & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary Spektra™ coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup.(D) Diameter1/4(R) Radius1/8(a°) Angle0.10°(B) Cutting Height1-1/2(d) Shank1/4Overall Length (L)3TypeBall Nose, nACo Ceramic CoatingFlutes2
Description
Specially designed for 2D and 3D CNC profiling and carving in plastic & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary Spektra™ coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup.(D) Diameter1/4(R) Radius1/8(a°) Angle0.10°(B) Cutting Height1-1/2(d) Shank1/4Overall Length (L)3TypeBall Nose, nACo Ceramic CoatingFlutes2
